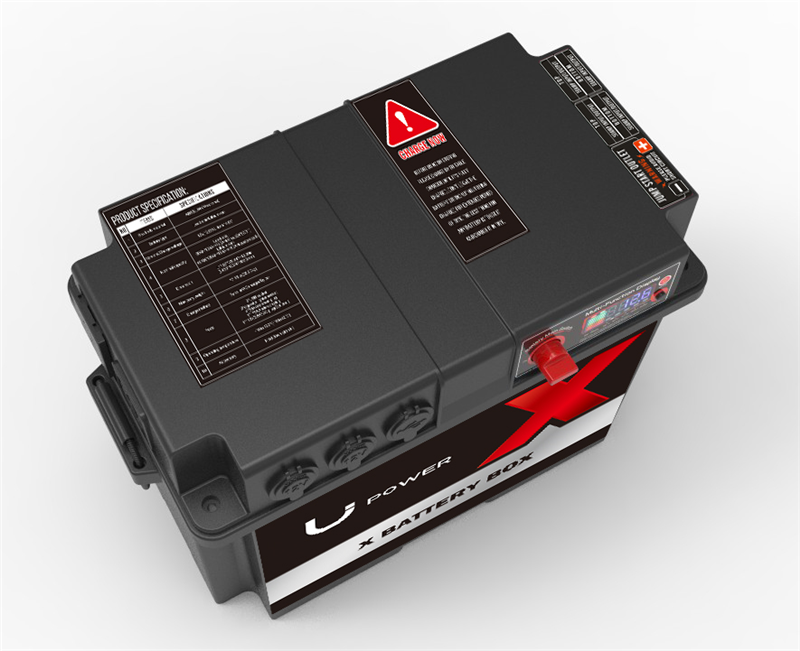

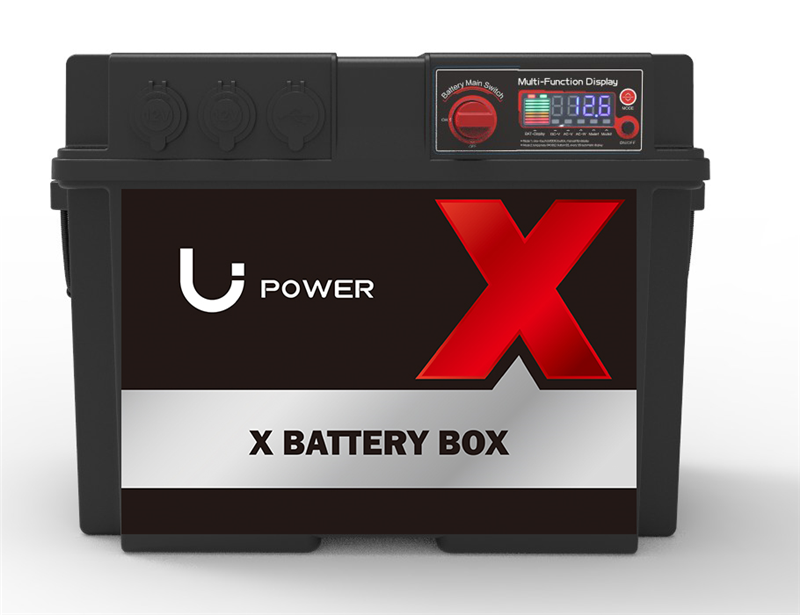

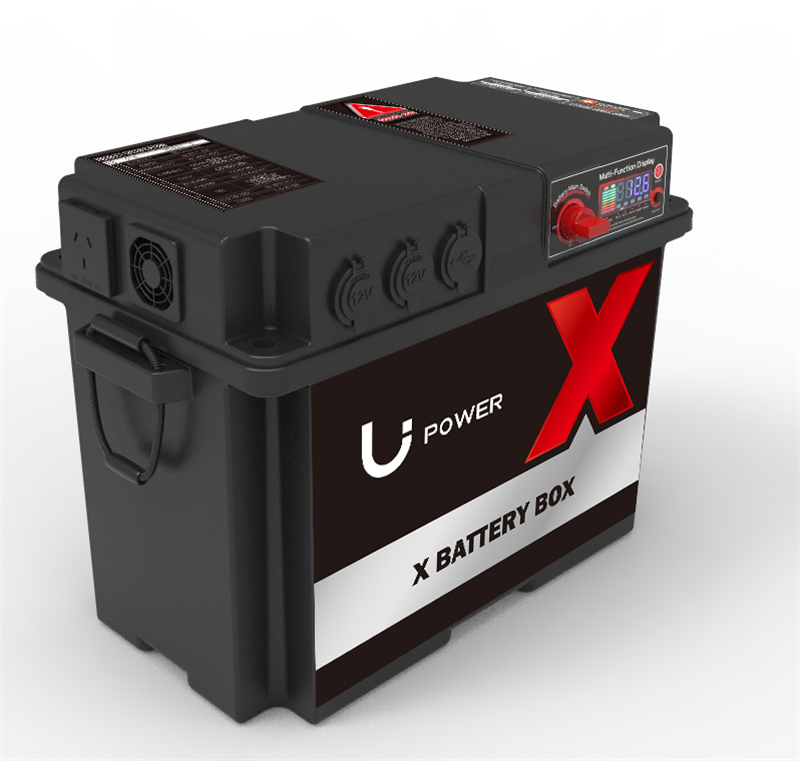

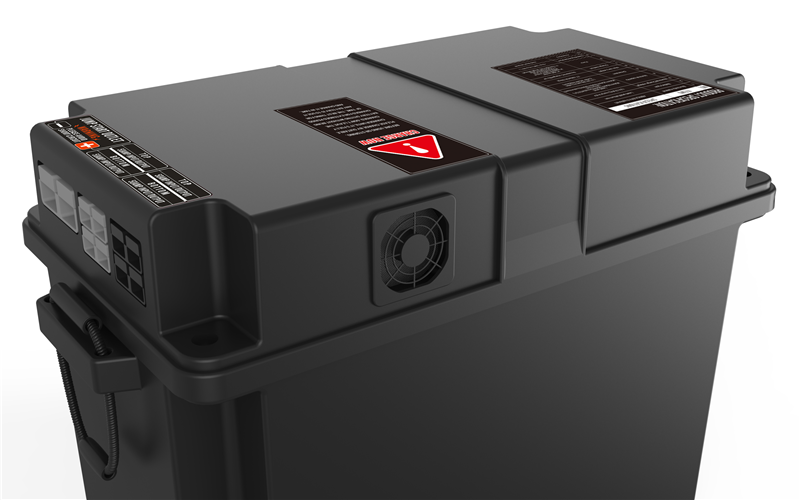

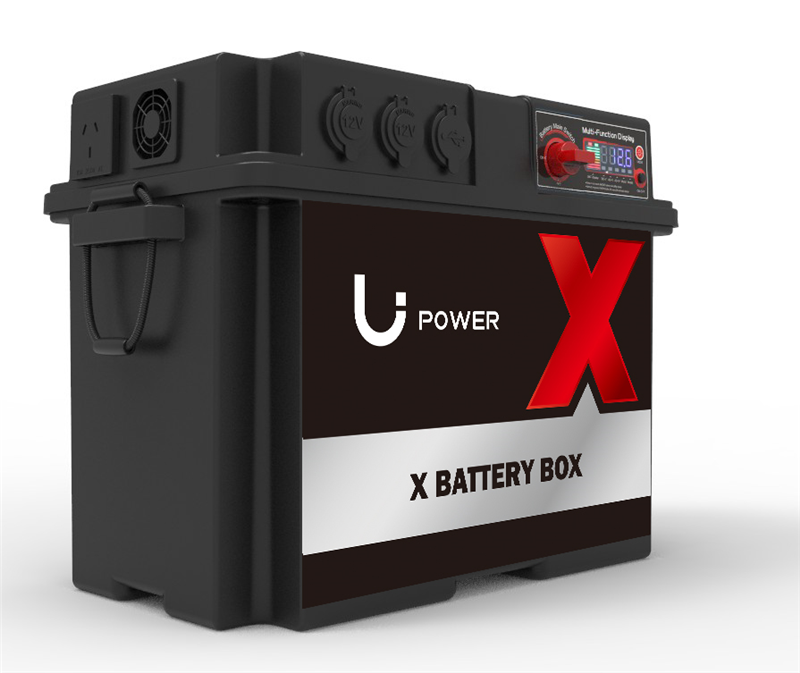

Heavy Duty AC Battery Box OVERVIEW

LICITTI heavy duty battery box allows you to turn a regular deep-cycle battery into a convenient portable power station, or create a simple dual battery setup using either a DC-DC charger or our optional 50A Voltage-Sensitive Relay (VSR) and Dual Battery Wiring Kit. It is suitable for a range of battery types including AGM, Lithium, Wet, Gel and Calcium, and can handle batteries up to 330mm (l) x 180mm (w) x 240mm (h) in size. Constructed of durable ABS plastic and meeting the UL 94V-0 standard for flammability of plastic products, this battery box is a high-quality unit that will last for many years. It contains two 12v outlets with 10A fuses, a dual USB outlet, four 50A Anderson-style outlets that can be used as outputs or inputs, and a 175A Anderson-style outlet which can be used as a jump-starter. Unlike most other models on the market, all Anderson-style ports are recessed into the body to minimise the possibility of damage, and the internal cabling uses heavy-gauge wire and quality connectors. The battery can be charged from a range of sources (including solar panels) by simply plugging into one of the 50A Anderson-style ports. The battery’s charge status and voltage can be easily seen via the large digital display.

SPECIFICATIONS

Specifications

Model No.

AC



Applicable Battery Specification

Battery Type

LiFePO4/Lead acid/AGM/Gel

Battery Voltage

12V

Capacity

70Ah to 230

Battery Size

L330*W175*H220mm

Battery Weight

Max 35.00Kg

Output Specification

AC Rate Power / Surge Power(max)

/

1000W

AC Continuous Output Voltage

/

100-120V / 220-240V

AC Rated Frequency

/

50Hz / 60Hz

AC Outlet

/

1 x AC Outlet (max 1000W)

DC Outlet

1 x 12V 10A socket

2 x USB3.0 + PD

1 x 10A solar input(max 45V)

3 x 12V 50A input/output

1 x 12V 175A outlet

Input Specification

AC Charger

Input: 100-120V / 220-240V AC, 50/60Hz, 10A

Output: 14.6V 40A

Solar MPPT charge

Max charging current: 10A

System volt: 12V

Max input power: 130W

Max volt on battery terminal: 25V

Operating Environment

Relative Humidity: 10%-90%

Operating Temperature: -10℃ to 50℃

Dimension

L455*W240*330mm

Weight

5.00KG

7.00KG
